SUNSUN BOTTOM FENCE FOR POOL POND CBD 380S SUNSUN

SUNSUN BOTTOM FENCE FOR POOL POND CBD 380S SUNSUN

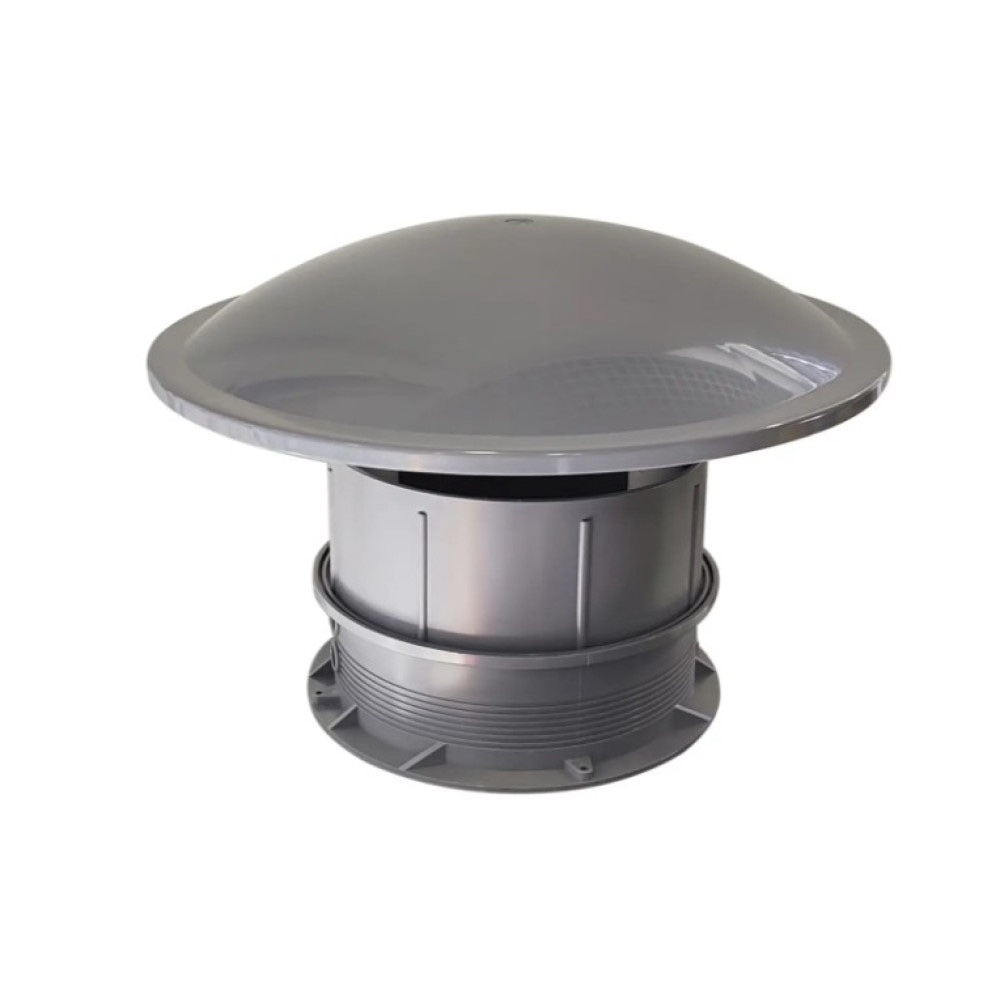

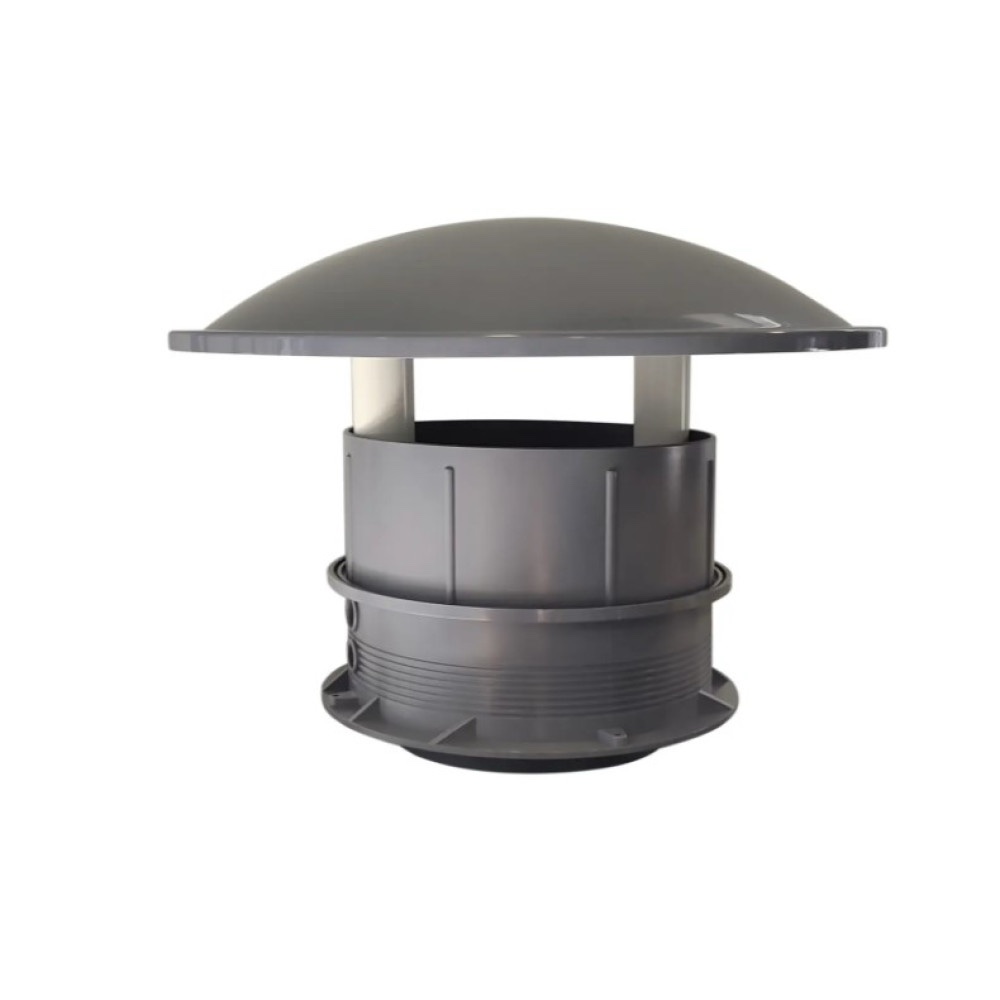

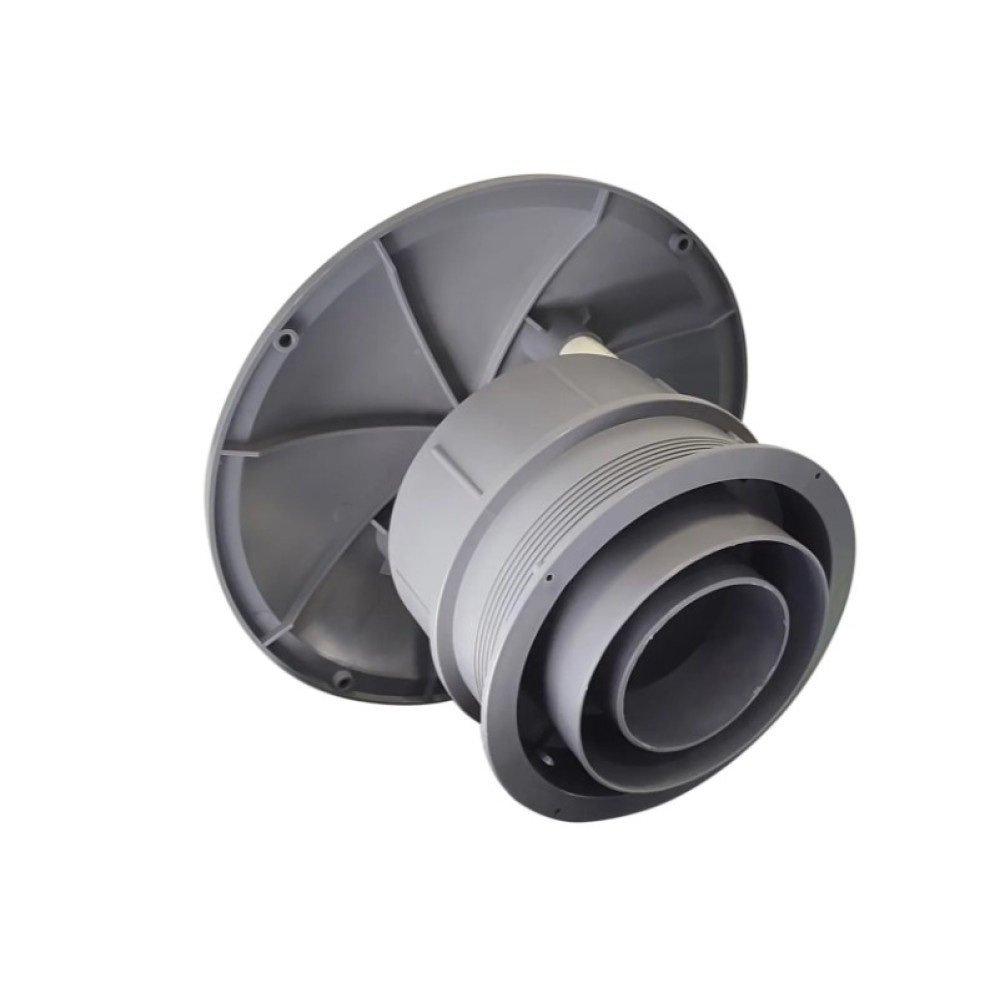

The CBD-380S bottom drain is mounted in the bottom of the pond and is designed to collect water from the lower layers of the pond for filtration, to empty the reservoir, improve water exchange, reducing the static area of water. Helps reduce the proliferation of water bacteria and siltation of the pond. Increases the efficiency of the filter system.

It is recommended to collect 70-75% of the total circulation water flow through the bottom drain, and 25-30% of the

• total volume through the

skimmers.

PARAMETERS

Bottom fence CBD-380S:

◦ Diameter 380 mm

◦ Connection 4′

◦ Material – polymer

◦ Total weight 1.5 kg

IMPORTANT:

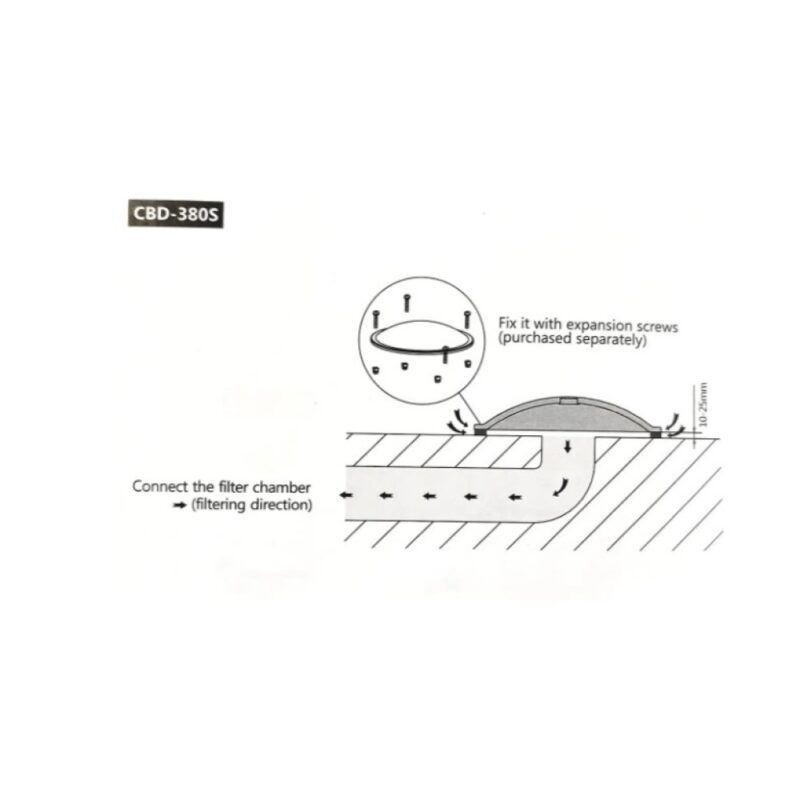

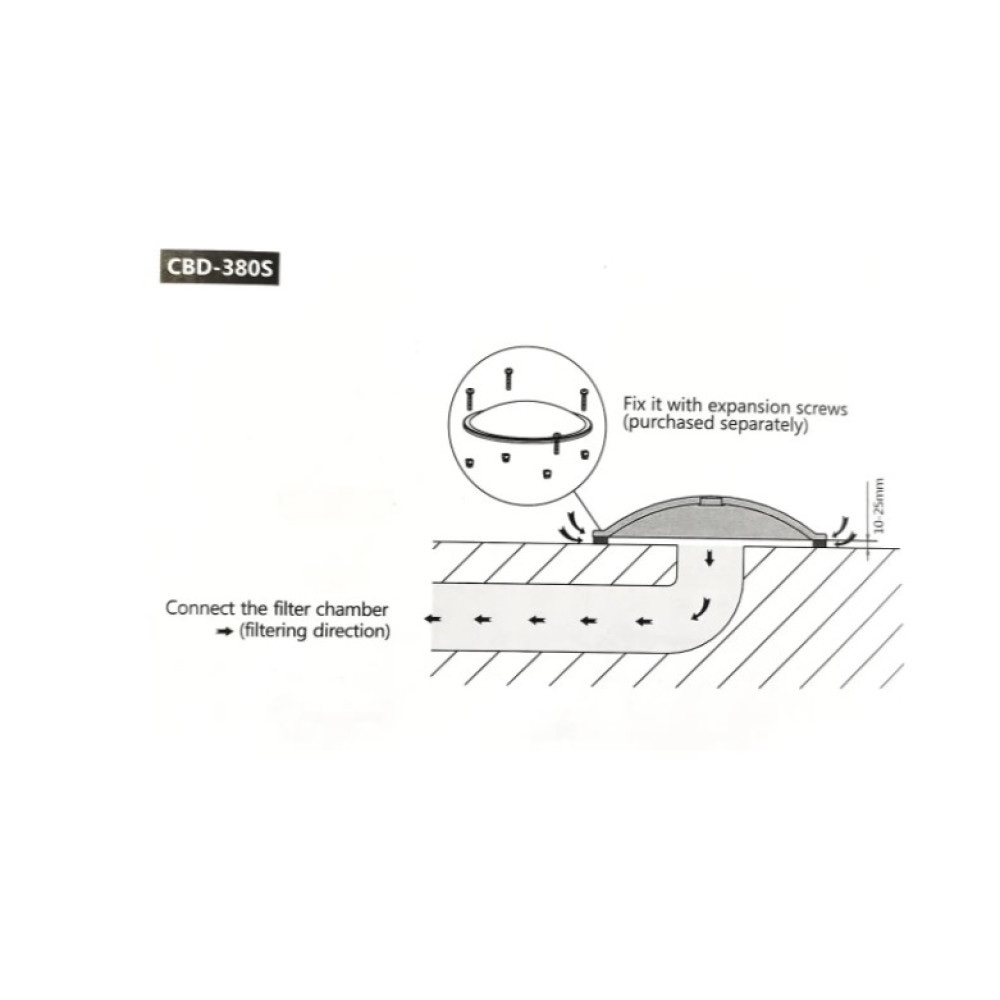

◦ when installing, there should be 2-2.5 cm between the fence cover and the bottom

◦ the connected water outlet line must have an angle of 45°
